TN LCD vs. IPS LCD

When selecting a display for your project, understanding the differences between TN TFT LCD and IPS TFT LCD panels is critical for balancing performance, cost, and application suitability. At WHTCLCD, a leading LCD display manufacturer in China, we offer a range of TFT LCD modules, including IPS LCD monitors and TN TFT displays, tailored to diverse needs. This article compares TN TFT LCD and IPS TFT LCD displays, highlighting their technical differences, advantages, and ideal use cases. Our expertise in LCD display design ensures businesses can choose the best solution from trusted LCD display suppliers.

Overview of TN and IPS LCD Technologies

Liquid Crystal Displays (LCDs) dominate the flat-panel display market, offering compact, versatile solutions compared to bulky CRT displays. TN TFT LCD (Twisted Nematic) panels were introduced as a cost-effective alternative when LCDs were initially expensive, simplifying the structure to reduce costs. However, this led to limitations in viewing angles and color quality. In contrast, IPS TFT LCD (In-Plane Switching), pioneered by Hitachi in 1995, enhances visual performance through innovative liquid crystal arrangements, evolving through iterations like Super-IPS and IPS-Pro.

WHTCLCD provides both TN TFT and IPS TFT LCD displays, such as 7-inch IPS touch UART LCD displays and 10.1-inch TFT LCD IPS displays, catering to applications from industrial instruments to consumer electronics.

Liquid Crystal Arrangement: The Core Difference

The primary distinction between TN TFT LCD and IPS TFT LCD lies in their liquid crystal (LC) arrangements:

• TN TFT LCD: When powered, liquid crystal molecules in a TN TFT display rotate horizontally in a helical pattern. When off, they align vertically. This vertical orientation limits light emission to a narrow range, affecting viewing angles.

• IPS TFT LCD: In an IPS LCD TFT, liquid crystals rotate horizontally whether the display is on or off, transitioning from a spiral to layered arrangement when powered off. By using a horizontal electric field, IPS TFT LCD displays maintain parallel alignment with the screen, significantly improving viewing angles.

This structural difference underpins the performance variations between TN TFT and IPS TFT LCD panels, influencing factors like color accuracy and power efficiency.

Comparing TN and IPS LCD Panels

Here’s a concise comparison of TN TFT LCD and IPS TFT LCD based on key performance metrics:

Narrower Viewing Angles in TN TFT LCD

The vertical liquid crystal alignment in TN TFT LCD restricts light emission, resulting in a narrow viewing angle (typically ~120°). Beyond this range, users notice color distortion and reduced image quality. In contrast, IPS TFT LCD displays, with their horizontal LC arrangement, emit light uniformly across angles, achieving near-180° viewing angles both vertically and horizontally. This makes IPS LCD monitors, like WHTCLCD’s 15.6-inch TFT LCD IPS display, ideal for applications requiring wide-angle visibility, such as collaborative displays or consumer devices.

Lower Grayscale Display in TN TFT LCD

Grayscale performance, which governs color transitions, is limited in TN TFT displays (6-bit, 2.62 million colors) compared to IPS TFT LCD (8-bit, 16.77 million colors). IPS LCD TFT panels deliver smoother, more natural transitions from black to white, enhancing visual clarity. For example, WHTCLCD’s 10.1-inch IPS TFT LCD display excels in applications like medical imaging or design, where precise color transitions are critical.

Faster Response Time in TN TFT LCD

TN TFT LCD panels typically offer faster response times, making them suitable for dynamic content like gaming or animations. IPS TFT LCD displays, while historically slower due to their high contrast and wide color gamut, have improved significantly with modern technology. For instance, WHTCLCD’s 7-inch IPS touch UART LCD display minimizes ghosting and jitter, making it viable for high-definition applications in consumer goods or media.

Inferior Color Restoration in TN TFT LCD

Color restoration depends on grayscale and color gamut. IPS TFT LCD outperforms TN TFT LCD with more gray levels and finer imaging, producing vivid, detailed colors. For example, a TN TFT display may show flat black in image corners, while an IPS LCD TFT reveals multiple color layers, as seen in WHTCLCD’s 10.1-inch TFT LCD IPS display for design-focused applications.

Lower Screen Hardness in TN TFT LCD

The vertical LC arrangement in TN TFT LCD makes it prone to water ripple effects when pressed, though it recovers quickly. IPS TFT LCD displays, with horizontal LCs and a protective resin film, offer up to 10 times faster recovery and higher surface hardness, preventing ripples. This durability makes IPS LCD monitors, like WHTCLCD’s 15-inch TFT LCD IPS display, ideal for touch-based applications, especially when paired with a capacitive touchscreen.

Higher Aperture Ratio and Light Transmittance in TN TFT LCD

TN TFT LCD benefits from a higher aperture ratio due to its electrode placement on both sides of the panel, allowing more light to pass through. This results in higher light transmittance and lower power consumption compared to IPS TFT LCD, where electrodes on one plane block more light, requiring stronger backlighting. WHTCLCD’s TN TFT displays, such as the 5-inch TFT LCD, are energy-efficient choices for portable devices.

Lower Production Cost of TN TFT LCD

The simpler structure of TN TFT LCD requires fewer manufacturing steps, reducing costs compared to IPS TFT LCD, which involves complex MASK processes. This cost advantage makes TN TFT ideal for budget-conscious projects, while IPS LCD TFT suits premium applications.

Choosing Between TN TFT LCD and IPS TFT LCD for Your Project

Selecting between TN TFT LCD and IPS TFT LCD depends on your project’s requirements:

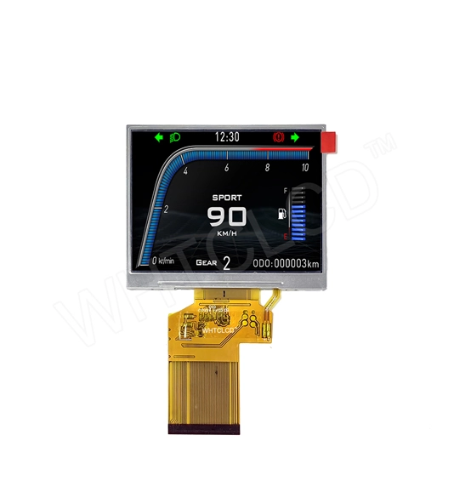

• TN TFT LCD: Best for applications in harsh environments or where cost and energy efficiency are priorities. Examples include industrial instruments, portable devices, or WHTCLCD’s 3.5-inch TN TFT displays for rugged use cases. Their fast response times also suit basic gaming displays.

• IPS TFT LCD: Ideal for projects demanding superior color accuracy, wide viewing angles, and durability, such as consumer electronics, medical displays, or design tools. WHTCLCD’s 7-inch IPS touch UART LCD display or 10.1-inch TFT LCD IPS display excels in these scenarios.

WHTCLCD offers custom LCD displays to balance performance and budget, ensuring optimal solutions for applications like Raspberry Pi 10.1-inch touch screens or 15-inch LCD monitors.

Why Choose WHTCLCD for Your Display Solutions?

As a premier LCD display company, WHTCLCD provides a wide range of TFT LCD modules, from 2.4-inch TN TFT displays to 21.5-inch IPS LCD monitors. Our LCD display OEM services deliver tailored solutions for industrial, consumer, and embedded applications. Whether you need a cost-effective TN TFT LCD or a high-performance IPS TFT LCD display, we ensure quality and reliability.

Conclusion

TN TFT LCD and IPS TFT LCD panels cater to different needs: TN TFT offers cost-efficiency and fast response times for rugged, budget-friendly applications, while IPS TFT LCD delivers superior color, wide viewing angles, and durability for premium displays. At WHTCLCD, we provide both TN TFT and IPS LCD displays to meet diverse project requirements. Visit https://www.whtctech.com/ to explore our LCD display wholesale options and discover how we can support your project as a leading LCD display manufacturer.
