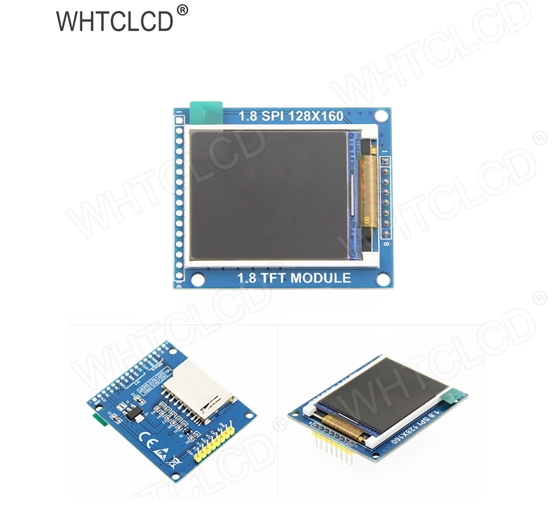

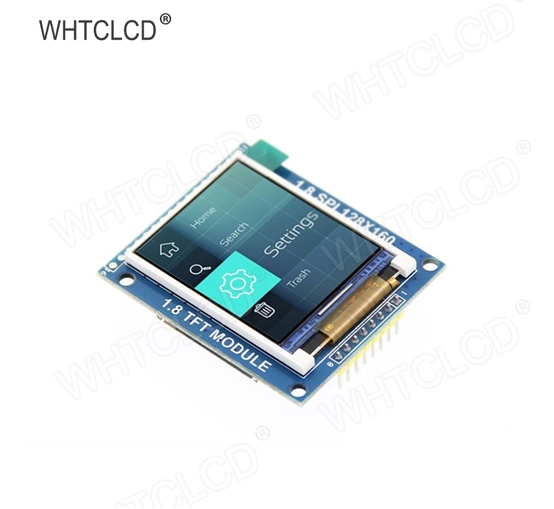

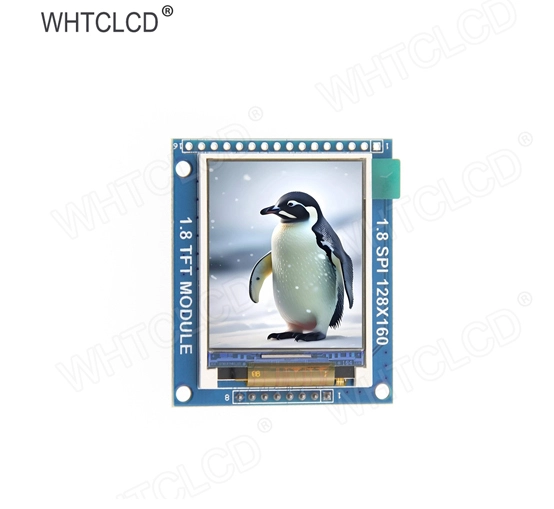

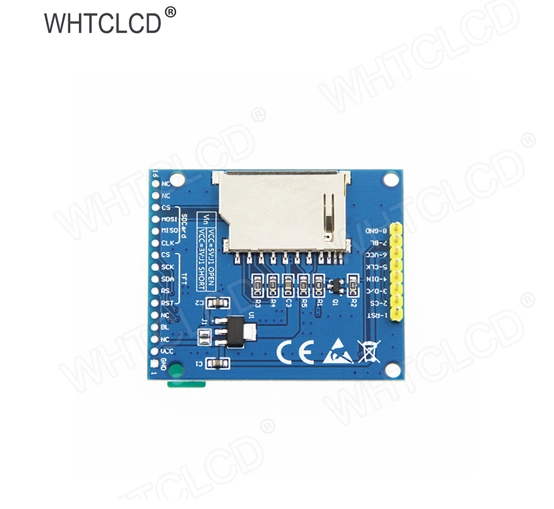

MSP1804 1.8 Inch SPI Disaply LCD Module

1.8-inch color screen, support 65K color display, display rich colors. 128X160 resolution, clear display. Using the SPI serial bus, it only takes a few IOs to illuminate the display. With SD card slot for convenient function expansion. Provide underlying libraries and rich sample programs for Arduino, C51, and STM32 platforms. Military-grade process standards, long-term stable work. Provide underlying driver technical support.

Parameters of 1.8 Inch SPI Disaply LCD Module(MSP1804)

Size  (inch)ResolutionModelViewInterfaceProduct Size  (mm)Active Area   (mm)AudioTouch panelPowerOP(℃)
1.8128*160MSP1804TNSPI44.96*53.47 *628.03*35.04NCNC5V/3.3V-20~60°C


Name

Parameter

Display Color

16BIT RGB 65K color

SKU

MSP1804

Screen Size

1.8(inch)

Type

TFT

Driver IC

ST7735S

Resolution

128*160 (Pixel)

Module Interface

4-wire SPI interface

Backlight

2 White Led

Active Area (AA area)

28.03x35.04 (mm)

Module PCB Size

44.96x53.47 (mm)

Operating Temperature

-20℃~60℃

Storage Temperature

-30℃~70℃

VCC power voltage

3.3V~5V

Logic IO port voltage

3.3V(TTL)

Power Consumption

TBD

Rough Weight(Package containing)

18 (g)

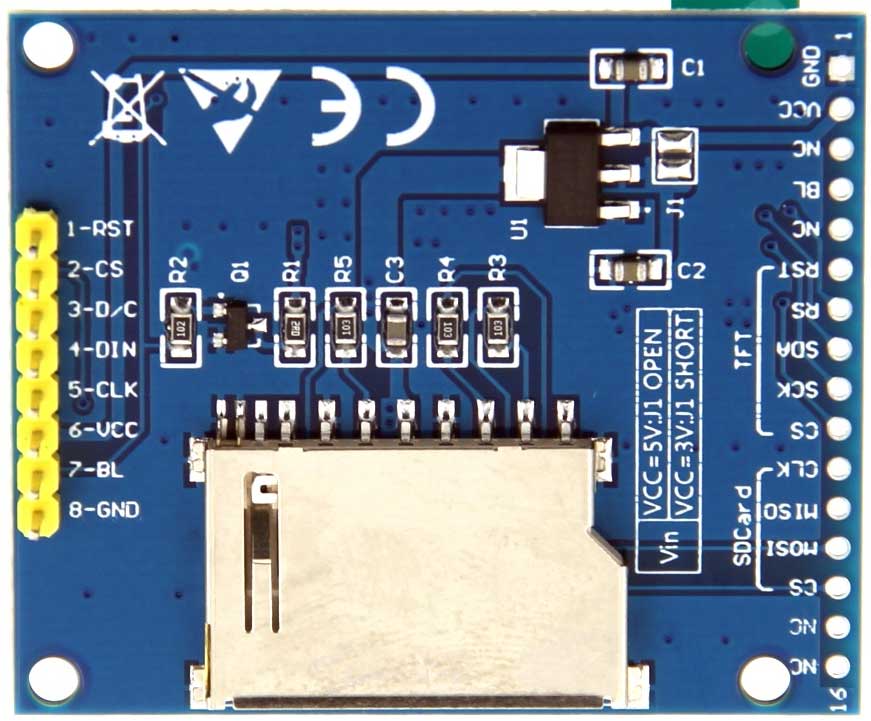

Hardware Description of 1.8 Inch SPI Disaply LCD Module(MSP1804)


arduino uno connect lcd display



Number

Pin Label

Description

1

RST

LCD reset signal, low level reset

2

CS

LCD chip select signal, low level enable

3

D/C

LCD register/data selection signal,

high level: register, low level: data

4

DIN

LCD SPI bus write data signal

5

CLK

LCD SPI bus clock signal

6

VCC

LCD Power positive (3.3V~5V)

7

BL

Backlight control, high level lighting,

if not controlled, connect 3.3V always bright

8

GND

LCD Power ground

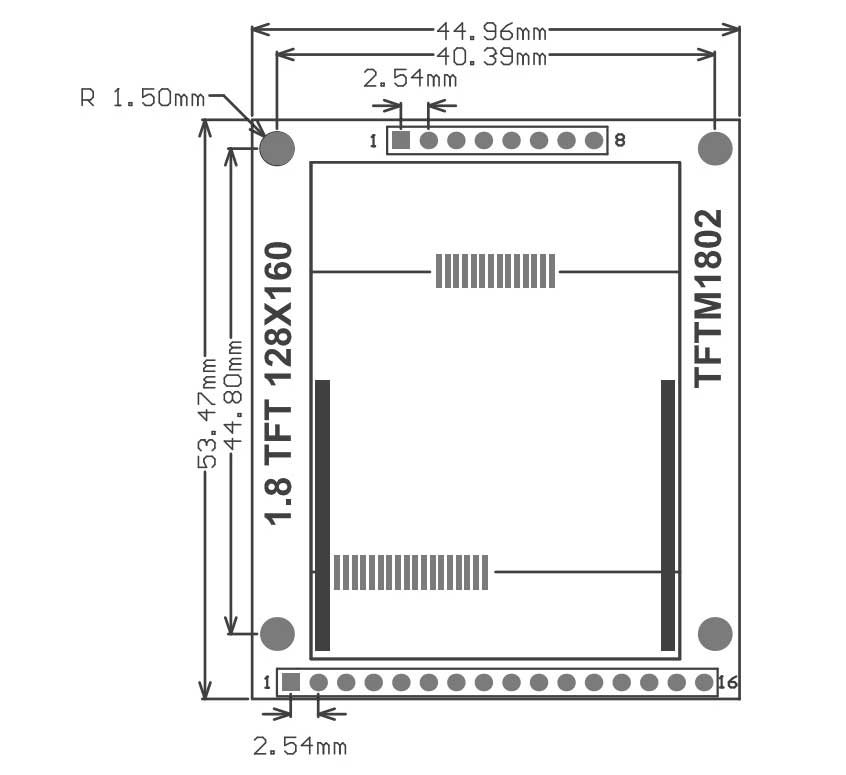

Product Size of 1.8 Inch SPI Disaply LCD Module(MSP1804)


arduino uno lcd display
