Innolux Display in 2026 In‑Vehicle Infotainment — Why Leading Auto Brands Keep Choosing Innolux

The instrument cluster failed EMC testing at week eleven of a fourteen-week qualification program. The root cause: PWM frequency from the backlight driver was coupling into the GNSS antenna circuit. The display had been selected on brightness and cost. Nobody had checked the EMC implications of the dimming strategy during the initial specification review.

In 2026, in-vehicle infotainment is no longer a screen bolted to the dashboard—it is a core vehicle experience layer tied to safety perception, brand differentiation, and warranty cost. Automakers and Tier-1 suppliers are under simultaneous pressure to deliver brighter, faster, more reliable displays while compressing qualification timelines and controlling lifetime cost. An innolux display is consistently selected in this environment because it balances supply stability, mature automotive integration documentation, and predictable performance across the cabin temperature range. For compact IVI clusters and auxiliary screens, AT043TN24 V.7 is widely specified when engineers need consistent mechanical fit, interface compatibility, and dependable long-term operation without the qualification risk of an unfamiliar platform.

How an Innolux Display Works in IVI—From LCD Module to User Experience

LCD Module Architecture

An innolux display module is a layered optical system: an LED backlight array provides uniform illumination from behind; a TFT (thin-film transistor) layer switches individual pixels; a liquid crystal layer modulates light transmission at each pixel under the TFT's electrical control; and a color filter array produces the RGB image. Polarizer films on both sides of the liquid crystal layer control the light path.

For IVI applications, this architecture has a specific advantage: the backlight is a separate, independently controllable component. Its brightness can be managed across a wide range—from full daylight brightness to night-mode dimming—without affecting the display's image quality or pixel behavior. The TFT and liquid crystal layers do not degrade differentially based on what content is displayed, which matters for IVI applications where static UI elements (navigation icons, status indicators, HVAC controls) are displayed continuously.

The IVI Signal Chain

The complete signal path from the vehicle's SoC to the driver's visual experience:

IVI SoC/GPU → Display interface (RGB/LVDS depending on platform) → Timing controller on the panel → TFT switching → Visual output

Each link in this chain must be specified to match. An innolux display with an RGB interface cannot be connected to a controller board with an LVDS output without an interface bridge—a hardware change that requires PCB revision and re-qualification. Confirming interface compatibility before the display is specified is the single most important step in avoiding program delays.

Why This Matters in 2026

Vehicle cabin temperatures range from -40°C cold-start conditions to 85°C+ in parked summer conditions. The display must initialize correctly at cold start, maintain stable brightness and color across the operating range, and survive storage at temperature extremes without permanent degradation. An innolux display specified with the correct operating and storage temperature ratings for the vehicle's climate zone eliminates a category of field failures that are expensive to diagnose and replace under warranty.

Innolux Display Spec and Configuration Checklist—AT043TN24 V.7 Focus

Specifying an innolux display without confirming all parameters against the system design is the most common cause of IVI display integration re-spins. Use this checklist before finalizing the specification.

Physical and Optical Parameters

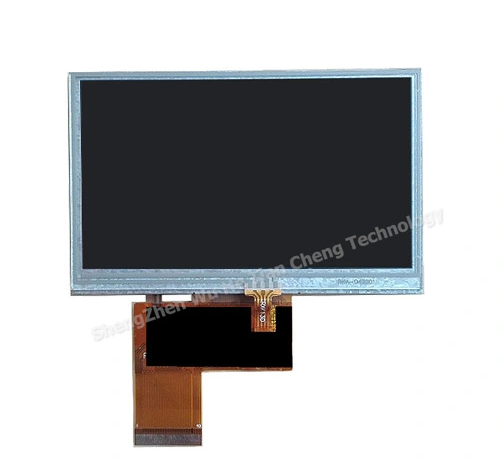

For AT043TN24 V.7, the 4.3-inch form factor with its specific active area, resolution, and interface configuration makes it a reference platform for compact IVI head units, instrument cluster secondary screens, and HVAC control displays where the mechanical envelope is already defined around this size class.

Electrical Interface Parameters

• Interface type: RGB or LVDS—this is a hard compatibility requirement with the controller board; confirm before any other specification decision

• Pin definition and connector type: confirm the physical connector and pin assignment match the cable harness; pin mapping errors cause display failure or damage at first power-up

• Power supply rails: confirm the panel's required voltage rails are available from the controller board at sufficient current capacity

• Backlight dimming method: PWM or analog dimming; PWM frequency selection has direct EMC implications for vehicle radio and GNSS systems—this is the parameter most commonly overlooked at the specification stage

• Inrush current: confirm the power supply can handle the panel's startup inrush without triggering the vehicle's power management protection

Environmental Parameters

• Operating temperature range: confirm the panel's rated operating range covers the vehicle cabin's internal temperature at maximum ambient conditions for the target market's climate zone

• Storage temperature range: relevant for vehicles parked in extreme climates and for panels stored in unheated warehouses before assembly

• Vibration and shock: confirm the panel's mechanical ratings cover the vehicle's vibration spectrum for the mounting location

Innolux Display Use Cases in 2026 Vehicles—Where It Fits Best

Compact Infotainment and Audio Head Units

Cost-controlled IVI platforms in volume vehicle programs require proven display modules with stable supply, consistent mechanical fit, and documented integration practices. The innolux display in the 4.3-inch class—including AT043TN24 V.7—is widely specified in these programs because the integration documentation is mature, the supply chain is established, and the qualification history reduces the risk of unexpected behavior during the program's validation phase.

Specification priority: interface compatibility with the platform SoC, brightness adequate for the vehicle's cabin lighting conditions, and supply continuity commitment for the program's production life.

Instrument Cluster Secondary Screens

Secondary screens in instrument clusters display trip information, driver assistance status, warning messages, and vehicle system states. These screens are always-on during vehicle operation and must maintain consistent luminance and color across the full operating temperature range. An innolux display with stable brightness behavior and a defined temperature derating curve supports the legibility requirements of these safety-adjacent applications.

Specification priority: luminance stability across operating temperature range, night-mode dimming capability without flicker at low brightness, and viewing angle adequate for the driver's range of seating positions.

HVAC and Climate Control Displays

HVAC control displays are always-on UI applications with static or semi-static content: temperature settings, fan speed, mode indicators. The innolux display LCD architecture's immunity to static content aging makes it appropriate for these applications. The display must also survive the thermal environment of the center console, which can reach elevated temperatures in parked summer conditions.

Specification priority: storage temperature rating covering the vehicle's parked summer temperature, consistent dimming behavior for night-mode operation, and mechanical fit within the HVAC control panel's constrained envelope.

Rear-Seat and Auxiliary Displays

Rear-seat entertainment and auxiliary control displays prioritize reliability and mechanical compatibility over premium visual performance. An innolux display in these applications benefits from the same supply stability and integration documentation that makes it attractive for primary IVI applications, at a cost point appropriate for auxiliary screen budgets.

Specification priority: mechanical compatibility with the headrest or center console mounting system, interface compatibility with the vehicle's display distribution architecture, and supply continuity for the vehicle's production life.

Aftermarket Upgrades and Replacement Programs

Aftermarket IVI upgrades and OEM replacement programs require display modules with consistent mechanical and electrical interfaces that allow installation without vehicle-specific tooling or controller board modification. AT043TN24 V.7 is specified in replacement programs where the original display used the same form factor and interface, enabling drop-in replacement with minimal integration risk.

Specification priority: mechanical outline consistency with the original display, interface and pin mapping compatibility with the existing cable harness, and availability of replacement stock for the aftermarket service window.

Installation and Selection Guide—Avoiding Harness and EMC Rework

Mechanical Stack-Up Planning

The mechanical stack-up from the vehicle's display opening to the panel's back surface determines whether the integration fits without tooling changes:

• Cover lens thickness: thicker cover glass improves mechanical protection but adds optical path length and reduces touch sensitivity; confirm the total stack-up depth fits within the enclosure's available depth

• Bonding method: OCA (optical clear adhesive) bonding between the cover lens and the panel eliminates the air gap that causes reflections and reduces contrast in high-ambient-light cabin conditions; air-gap assembly is simpler but reduces optical performance

• Gasket and foam: define the gasket compression range and foam thickness to ensure the panel is held securely without applying stress to the panel's frame

• Vibration constraints: confirm the mounting method provides adequate support across the vehicle's vibration spectrum for the mounting location

Electrical Integration

• Connector and pin map verification: compare the innolux display connector pin assignment against the cable harness wiring before first power-up; do not assume pin mapping is consistent between display models even from the same manufacturer

• Cable length limits: RGB and LVDS interfaces have maximum cable length limits beyond which signal integrity degrades; confirm the cable routing distance is within the interface's specified limit

• Grounding strategy: the display's ground connection must be low-impedance and connected to the vehicle's chassis ground at a single point to prevent ground loops that cause display noise

• Backlight power routing: route backlight power separately from logic power to prevent backlight switching noise from coupling into the display's signal lines

EMC and EMI Considerations

The backlight driver's PWM frequency is the most common source of EMC problems in IVI display integration. PWM switching at frequencies that fall within the vehicle's AM radio band (530–1700 kHz) or near GNSS frequencies (1575 MHz for GPS L1) can cause interference that fails the vehicle's EMC certification.

For AT043TN24 V.7 and similar innolux display modules:

• Select PWM frequency outside the AM radio band and away from GNSS harmonics

• Shield the backlight driver circuit and cable from the vehicle's antenna circuits

• Use spread-spectrum PWM if available in the backlight driver to reduce peak emissions

• Confirm EMC performance with the complete integrated system before the program's EMC certification gate

Thermal and Optical Tuning

• Day/night brightness curves: define the brightness setpoints for full daylight, overcast, and night conditions; confirm the dimming range covers the full span from maximum daylight brightness to minimum night brightness without visible flicker

• Auto-dimming sensor strategy: if the vehicle uses an ambient light sensor for automatic brightness adjustment, confirm the sensor's response curve is compatible with the display's dimming range

• Heat management: the backlight driver generates heat that must be dissipated away from the panel; elevated panel temperature accelerates backlight degradation and reduces service life

Qualification Planning

Define acceptance tests before the qualification program begins:

• Luminance uniformity across the active area at defined brightness setpoints

• Flicker perception test at minimum brightness setting (critical for night-mode operation)

• Temperature cycling: cold start at minimum operating temperature, hot soak at maximum operating temperature

• Vibration test: confirm the mounting method maintains display integrity across the vehicle's vibration spectrum

• EMC pre-compliance: confirm backlight PWM frequency and shielding before the formal EMC certification test

Innolux Display Maintenance and TCO—Lifecycle Cost Drivers for Auto Programs

Lower Redesign Risk Across Production Batches

Automotive programs run for five to eight years from SOP to EOP. An innolux display strategy that standardizes on a specific model—such as AT043TN24 V.7—and manages revision changes through a controlled approval process reduces the engineering effort required to maintain production continuity across the program's life.

Each display model change—whether due to end-of-life, revision change, or supply disruption—requires mechanical verification, electrical interface verification, timing parameter verification, and optical performance verification. For an automotive program, this verification cycle includes formal qualification testing that can take eight to twelve weeks. Minimizing the frequency of these cycles through supply continuity planning is a direct TCO reduction.

Serviceability and Spares Management

A standardized part number like AT043TN24 V.7 simplifies the aftermarket service supply chain: one part number covers all vehicles in the program that use this display, reducing the inventory complexity at dealer service centers and reducing the risk of incorrect part substitution during field replacement.

For programs with multiple display sizes or configurations, standardizing on innolux display models across the range reduces the number of distinct part numbers in the service supply chain and simplifies technician training.

Extending Backlight Service Life

The most cost-effective maintenance action for an innolux display in IVI service is correct brightness management from the system design stage:

• Operate at the minimum brightness that provides adequate readability under the actual cabin lighting conditions

• Implement automatic brightness reduction when the vehicle is parked or the cabin is dark

• Maintain the panel's operating temperature within the rated range through adequate thermal management in the enclosure

• Use clean, regulated power supplies to avoid voltage transients that stress the backlight driver

These design decisions, made during the initial integration phase, can extend backlight service life by 30–50% compared to continuous maximum-brightness operation in an unmanaged thermal environment—directly reducing the frequency of warranty display replacements.

TCO Comparison Framework

Conclusion

In 2026, the IVI programs that deliver on time and within warranty cost targets are the ones where the display specification was treated as a system-level engineering decision—not a component procurement afterthought. An innolux display provides the supply stability, integration documentation, and predictable performance that automotive programs require across a five-to-eight-year production life.

For compact IVI applications, AT043TN24 V.7 represents a field-proven platform with defined mechanical and electrical interfaces that support both new program designs and replacement sourcing. The specification work that protects this investment happens before the first prototype is built: confirmed interface compatibility, verified mechanical fit, defined dimming strategy with EMC implications evaluated, and a supply continuity plan that covers the program's full production life.

Ready to Get a Configuration Recommendation and Quote?

Visit the product pages and submit your operating conditions, quantity, specifications, target metrics, and current problems to receive a matched recommendation and pricing:

Submit the following for a fast, accurate recommendation:

• Operating conditions: cabin temperature range, vibration level, day/night brightness requirements, sunlight exposure

• Quantity: prototype quantity, SOP annual volume, spare parts requirement

• Size and specifications: panel size, resolution, interface type, brightness target, touch and cover lens requirements

• Target metrics: backlight lifetime target, dimming and flicker requirement, luminance uniformity, cost ceiling, qualification timeline

• Current problems: fitment mismatch, flicker at low brightness, EMI noise, insufficient daylight brightness, long lead time, controller compatibility issues

FAQ

Q1: What is an Innolux display?

An innolux display is a display module manufactured by Innolux Corporation, one of the world's major LCD panel producers. Innolux displays are widely used in automotive IVI, instrument cluster, and embedded applications where stable performance, predictable integration, and supply continuity are required. They are available in a range of sizes, resolutions, brightness levels, and interface configurations suited to compact IVI head units, cluster secondary screens, HVAC control displays, and auxiliary screens.

Q2: Innolux LCD vs. OLED for in-vehicle infotainment—what's the practical difference?

An innolux display LCD uses a backlight and liquid crystal layer to produce images—the backlight degrades gradually and predictably, and the display is not susceptible to differential pixel aging from static UI content. OLED uses self-emissive pixels that deliver superior contrast and deep blacks, but automotive system designers must evaluate lifetime behavior for static UI patterns (navigation icons, status indicators, HVAC controls) displayed continuously at high brightness, as well as long-term sourcing strategy for the specific model across the program's production life. LCD remains the dominant choice for volume automotive IVI programs where supply stability and integration maturity are primary requirements.

Q3: What ROI or payback do IVI display upgrades provide?

ROI for an innolux display upgrade in an IVI program comes from three sources: reduced warranty return rate from display failures (a correctly specified and thermally managed display fails less frequently, reducing the cost of warranty replacements); fewer integration re-spins (a display with complete integration documentation and stable supply reduces the engineering effort required to maintain production continuity); and improved driver satisfaction metrics (better readability and consistent performance reduce the display-related complaints that affect vehicle quality scores). To estimate ROI accurately, provide your current display failure rate, warranty replacement cost per unit, and annual production volume.

Q4: Do we need to modify our system to use AT043TN24 V.7?

If AT043TN24 V.7 is a true same-model replacement for an existing installation, modification may not be required—but you must verify the mechanical outline, interface type, connector and pin mapping, power supply voltage rails, backlight dimming method, and timing parameter compatibility with the controller board before assuming drop-in compatibility. For new designs using AT043TN24 V.7 as the reference platform, the controller board, cable harness, and backlight driver circuit should be designed to the panel's confirmed specification from the outset, with EMC implications of the dimming strategy evaluated during the initial design phase.

Q5: What parameters should we provide to select the right Innolux display?

To receive an accurate recommendation for an innolux display configuration, provide: panel size (diagonal inches); required resolution; target brightness in nits for daylight and night-mode conditions; viewing angle requirement (driver-centric or multi-passenger); interface type (RGB or LVDS) and pin count; mechanical drawing constraints (outline dimensions, mounting hole positions, cable exit direction); touch technology and cover lens stack-up; operating and storage temperature range for the target market's climate zone; target backlight lifetime; quantity for prototype and annual production; qualification timeline; and any current problems with the existing display (flicker at low brightness, EMI noise, insufficient daylight brightness, fitment mismatch, connector incompatibility, or supply disruption).
