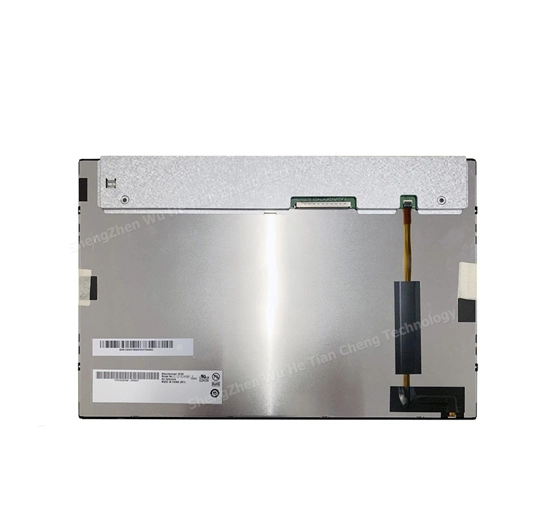

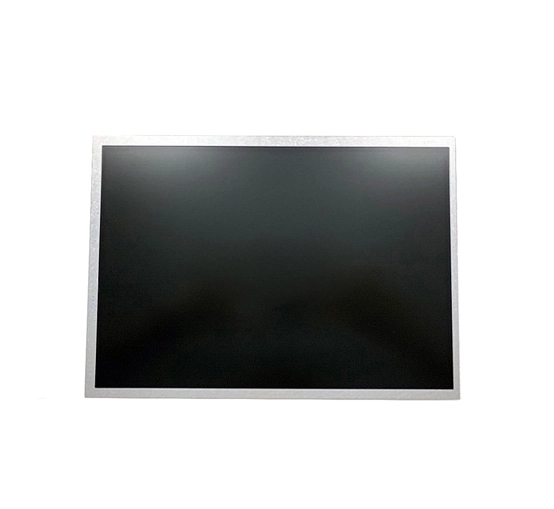

G121EAN01.4 12.1 AUO LCD Panel

Name: G121EAN01.4 12.1 AUO LCD Panel
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

AUO 12.1 inch tft lcd ips panel G121EAN01.4 with 1280(RGB)x800 WXGA resolution, brightness 300 cd/m²(High Brightness). This lcd display's working temperature is -30 ~ +85 (°C) and it's storage temperature is -30 ~ +85 (°C). Based on it's white LED backlight. This model is recommended for industrial and Medical imaging use.

Compatible resistive touch and capacitive touch options are available. Additionally, we provide a matched LCD controller board.

Products

Parameters of G121EAN01.4 12.1 AUO LCD Panel

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Luminance(cd/m2)	OP(℃)
12.1	1280*800	G121EAN01.4	2781849.64	261.12*163.2	IPS	LVDS	300	-30~85°C

General Specifications of G121EAN01.4 12.1 AUO LCD Panel

Manufacturer	AUO
Model Name	G121EAN01.4
Screen Size	12.1 inch
Pixel Number	1280(RGB) × 800 , WXGA
Active Area(mm)	261.12(H) × 163.2(V)
Bezel Area(mm)	261.12(H) × 163.2(V)
Treatment	Anti-glare , Hardness 3H
Luminance	300 cd/m² (Typ.)
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)
Response	25 (Typ.)(Tr/Td) ms
Work Mode	AHVA , Normally black , Transmissive
Color Depth	262K/16.2M , 99% sRGB
Backlight	WLED ,30K hours , with LED Driver
Net Weight	480g
Touchscreen	without
Signal Type/interface Type	LVDS (1 ch, 6/8-bit) , 30 pins
Voltage Supply	+3.3 V
Max. Ratings	Storage Temp.: -30 ~ +85 (°C)
Max. Ratings	Operating Temp.: -30 ~ +85 (°C)
Package	AUO Original packing;
	20 pcs/ctn;
	weight : 15.5Kgs;
	size : 450(L) x 375(W) x 320(H)mm
