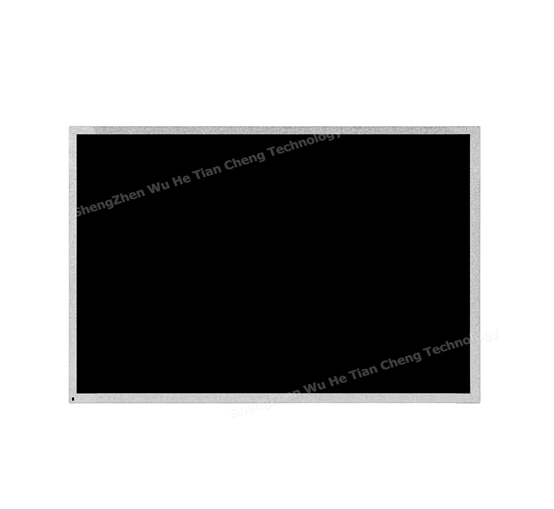

G173HW01 V0 17.3 AUO LCD Panel

Name: G173HW01 V0 17.3 AUO LCD Panel
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

AUO 17.3 inch tft lcd panel G173HW01 V0 with 1920(RGB)x1080 Full HD resolution, brightness 400 cd/m². This lcd display's working temperature is 0 ~ +70 (°C) and it;s storage temperature is -20 ~ +70 (°C). Based on it's white LED backlight. This model is recommended for industrial use.

Compatible resistive touch and capacitive touch options are available. Additionally, we provide a matched LCD controller board.

Products

Parameters of G173HW01 V0 17.3 AUO LCD Panel

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Luminance(cd/m2)	OP(℃)
17.3	1920*1080	G173HW01 V0	403 * 240 * 13	381.888*214.812	TN	LVDS	400	-0~70°C

General Specifications of G173HW01 V0 17.3 AUO LCD Panel

Manufacturer	AUO
Model Name	G173HW01 V0
Screen Size	17.3 inch
Pixel Number	1920(RGB)×1080 , FHD
Active Area(mm)	381.888 (H) x 214.812 (V)
Outline(mm）	403 × 240 × 13 (H×V×D)
Treatment	Hard-coating (3H), Glare
Luminance	400 cd/m² (Typ.)
Contrast Ratio	600 : 1 (Typ.) (TM)
Viewing Angle	80/80/60/80 (Typ.)
Response	37/3 (Typ.)(Tr/Td) ms
Work Mode	TN, Normally white, Transmissive
Color Depth	16.7M , 72% NTSC
Backlight	WLED , 50K hours , with LED Driver
Net Weight	1.08Kgs
Touchscreen	without
Signal Type/interface Type	LVDS (2 ch, 8-bit) , 30 pins
Voltage Supply	+3.3 V
Max. Ratings	Storage Temp.: -20 ~ +70 (°C)
Max. Ratings	Operating Temp.: 0 ~ +70 (°C)
Package	AUO original package;
Package	10 pcs/ctn
