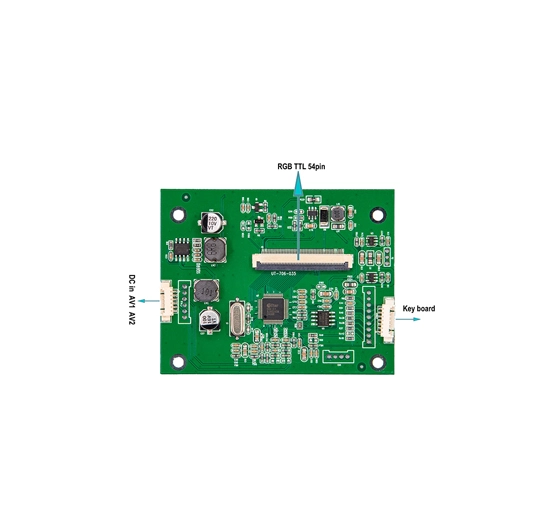

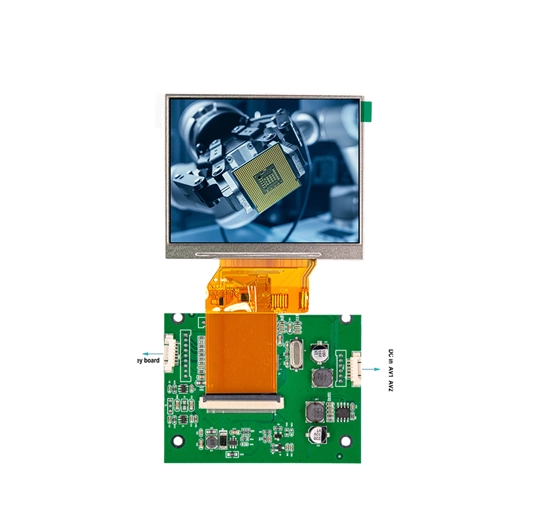

UT-706-035 RGB TTL LCD Controller Board

Parameters of UT-706-035 RGB TTL LCD Controller Board


No.ModelParameterinterfaceTouchpower supply
12UT-706-035AV(CVBS) Signal input; Supports 3.5 inch LCD screenRGB TTL 54pinNODC12V



General Specifications of UT-706-035 RGB TTL LCD Controller Board

Model: UT-706-035

1 HDMI, VGA, CVBS (optional) video signal input

2 Signal output supports RGB 54pin interface LCD screen

3 Power input: DC+12V

4 Multi functional OSD Operations

5 With remote control function(optional)


Model

UT-706-035

Signal source

AV(cvbs)

output interface

RGB_54pin

MAX Resolution support

320*240(60~75Hz)

Power input

DC +12V

CVBS

1.0Vp-p75Ω

Operation Temperature

-10℃~+60℃

Working humidity

90%RH

Storage temperature

-20℃~+70℃

Save humidity

90%RH

screen size

3.5 inch

A sxreen that

Can be driven

3.5 inch

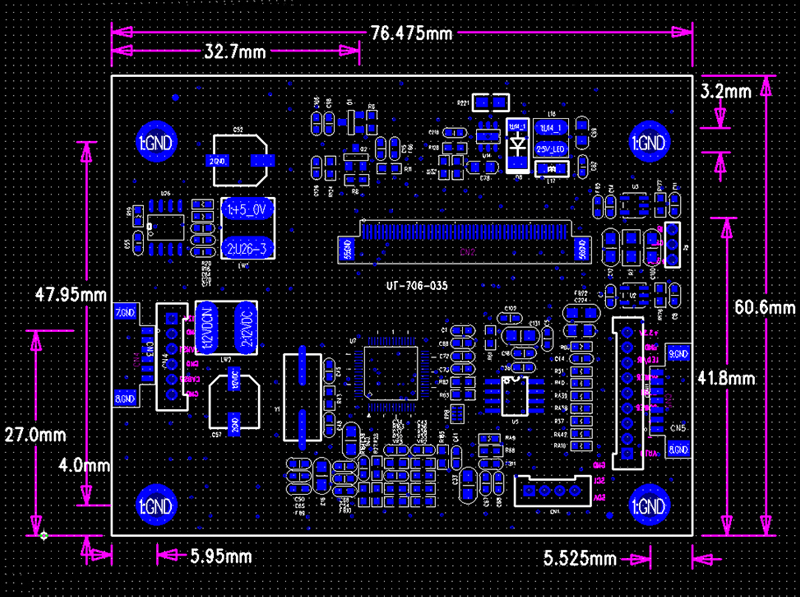

Structural Size of UT-706-035 RGB TTL LCD Controller Board

UT-706-035 RGB TTL LCD Controller Board
