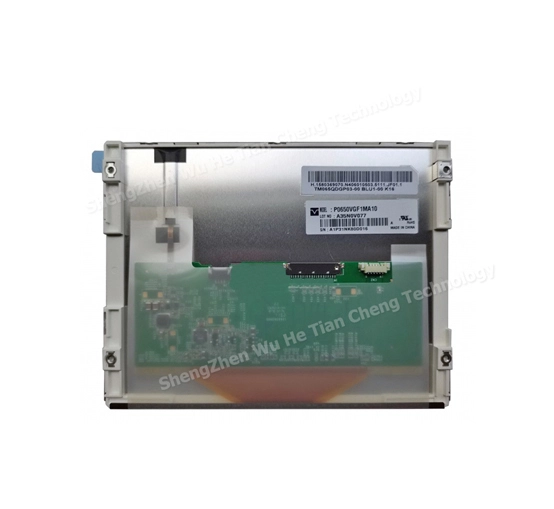

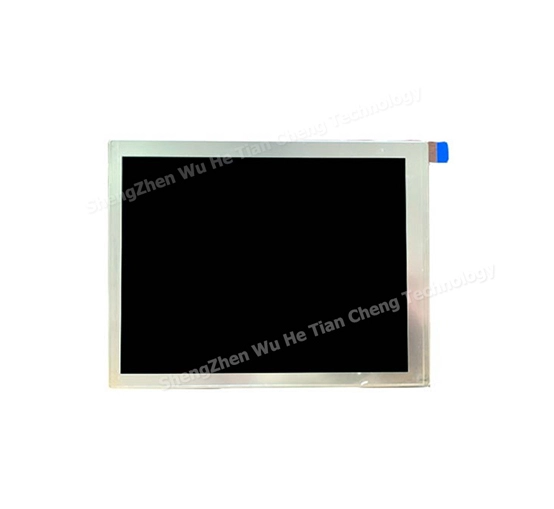

P0650VGF1MA00 6.5 Tianma LCD Panel

TIANMA 6.5 inch tft lcd panel P065VGFIMA10 with 640(RGB)x 480 VGA resolution, brightness 800 cd/m². This lcd display's working temperature is -30 ~ +80 (°C), and its storage temperature is -40 ~ +90 (°C). Based on its white LED backlight. This P0650VGF1MA10 model is recommended for industrial use and outdoor highlights.

Compatible resistive touch and capacitive touch options are available. Additionally, we provide a matched LCD controller board, as well as the alternative model P0650VGF1MA00.


Products

Parameters of P0650VGF1MA00 6.5 Tianma LCD Panel

Size(inch)ResolutionModelLCM Dimension(mm)Active Area(mm)ViewInterfaceLuminance(cd/m2)OP(℃)
6.5640*480P0650VGF1MA00154*121*11132.48*99.36IPSLVDS1200-30~80°C
