LCD vs. OLED for Industrial HMI: Why AUO Panels Still Lead the Market

The OLED sample looked stunning in the conference room. Deep blacks, perfect contrast, thin profile. The procurement team was ready to switch.

Then the engineering team ran the numbers: static UI elements on a factory HMI running 24/7, ambient temperatures pushing 50°C in summer, a five-year replacement parts commitment, and a controller board already designed for LVDS. The OLED option quietly disappeared from the shortlist.

In 2026, industrial HMI display decisions are being made under more pressure than ever: higher uptime expectations, longer lifecycle procurement windows, harsher operating environments, and tighter total cost of ownership targets. The AUO panel remains the practical, proven choice for most of these applications—not because it wins every spec comparison on paper, but because it wins where industrial deployments actually fail: supply continuity, predictable lifetime behavior, and drop-in replacement compatibility. For integrators standardizing on a specific model, C123HAX02.2 represents exactly this kind of field-proven, specification-stable platform.

How an AUO Panel Powers Industrial HMI Reliability—LCD Working Principle vs. OLED

LCD Architecture: Stable by Design

An AUO panel LCD module operates through a layered optical system: an LED backlight array provides uniform illumination; a liquid crystal layer modulates light transmission pixel by pixel under electrical control; a color filter array produces the RGB image; and polarizer films on both sides of the liquid crystal layer control the light path.

This architecture has a fundamental characteristic that matters for industrial HMI: the backlight is a separate, controllable component. Its brightness can be managed independently of the display content, its degradation is predictable and gradual, and it can be dimmed during low-activity periods to extend service life. The liquid crystal layer itself has no self-emissive elements that degrade with use.

Why This Matters for 2026 Industrial HMI

Factory-floor HMIs typically display static or semi-static UI elements for extended periods: status indicators, process values, alarm states, and navigation menus that don't change frequently. For OLED displays, static content creates differential aging between pixels that display bright elements continuously and pixels that remain dark—a phenomenon that produces visible image retention over time in high-duty-cycle applications.

An AUO panel LCD does not have this characteristic. The backlight illuminates the entire panel uniformly regardless of content, and the liquid crystal layer's switching behavior does not degrade differentially based on what is displayed. For a factory HMI running the same screen layout for eight to twelve hours per shift, this is a meaningful reliability advantage.

The OLED Trade-Off for Industrial Applications

OLED delivers genuine advantages in specific contexts: superior contrast ratio, faster pixel response, thinner form factor, and excellent color accuracy. For consumer electronics, medical imaging displays, and premium visualization applications where these properties justify the cost and the duty cycle is moderate, OLED is a strong choice.

For industrial HMI applications where the evaluation criteria are 24/7 duty cycle reliability, static UI content, supply chain stability for multi-year production programs, and drop-in replacement compatibility with existing controller boards, the AUO panel LCD architecture consistently wins the engineering review.

AUO Panel Key Specs and Configuration Checklist—Using C123HAX02.2 as Reference

Specifying an AUO panel without confirming all interface and mechanical parameters against the existing system design is the most common cause of HMI display integration rework. Use this checklist before finalizing the specification.

Physical and Optical Parameters

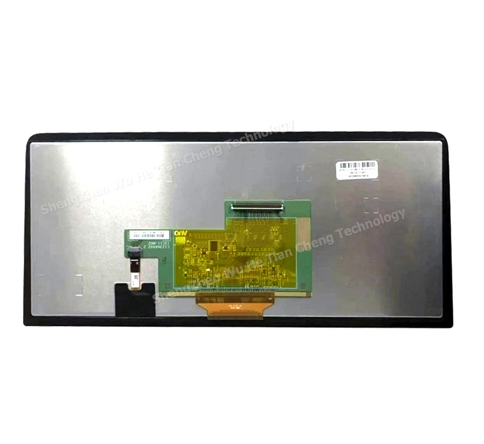

For the C123HAX02.2, the 12.3-inch form factor and its specific active area, resolution, and interface configuration make it a reference platform for HMI designs in the 10–14 inch class where LVDS interface and the specific mechanical outline are already designed into the product.

Electrical Interface Parameters

• Interface type: LVDS or eDP—this is a hard compatibility requirement with the controller board; changing interface type requires controller board modification or replacement

• LVDS lane count: 1-channel or 2-channel LVDS; must match the controller's output configuration

• Connector type and pin mapping: confirm the physical connector and pin assignment match the cable assembly; pin mapping errors cause display failure or damage

• Power supply rails: confirm the panel's required voltage rails (typically 3.3V logic + backlight voltage) are available from the controller board

• Backlight dimming method: PWM or analog dimming; confirm compatibility with the controller's backlight control output

• Inrush current: confirm the power supply can handle the panel's startup inrush without triggering overcurrent protection

Environmental Parameters

• Operating temperature range: confirm the panel's rated operating range covers the enclosure's internal temperature at maximum ambient conditions

• Storage temperature range: relevant for panels stored in unheated warehouses or shipped through temperature extremes

• Humidity rating: confirm for installations in high-humidity environments (food processing, outdoor kiosks, coastal facilities)

• Backlight lifetime: rated hours to 50% brightness at defined operating conditions; confirm against the product's service interval targets

AUO Panel in 2026 Industrial HMI Use Cases—Where LCD Still Leads

Factory Automation HMIs

Production line HMIs run long shifts with static or semi-static UI layouts displaying machine status, process parameters, and alarm states. The AUO panel LCD's immunity to static content aging makes it the appropriate choice for these applications. Multi-operator stations where the display must be readable from multiple angles benefit from wide-viewing-angle panel configurations that maintain color accuracy across the operator's range of positions.

Specification priority: wide viewing angle, anti-glare surface treatment for factory lighting, backlight lifetime rated for 24/7 operation, and supply continuity for multi-year production programs.

Process Control and SCADA Terminals

Control room and SCADA terminals operate continuously with strict downtime cost implications. A display failure in a process control terminal can require an emergency maintenance response that costs multiples of the display's replacement value. The C123HAX02.2 and similar AUO panel models support this application through predictable lifetime behavior, available replacement stock, and consistent mechanical and electrical interfaces that allow field replacement without controller board modification.

Specification priority: replacement availability commitment, consistent form factor across production batches, and operating temperature range covering the control room's thermal envelope.

Medical and Diagnostics Cart Displays (Industrial-Grade Builds)

Medical equipment displays require consistent luminance calibration, controlled viewing angle, and field serviceability that allows display replacement without returning the entire unit to the manufacturer. An AUO panel with stable brightness behavior and a defined calibration procedure supports the luminance consistency requirements of diagnostic applications without the differential aging concerns that OLED presents in high-duty-cycle medical imaging contexts.

Specification priority: luminance stability over operating life, consistent color performance, and mechanical compatibility with the equipment's display mounting system.

Transportation and Semi-Outdoor Kiosks

Outdoor and semi-outdoor kiosk applications require higher brightness than standard indoor HMIs to maintain readability under direct or indirect sunlight. AUO panel high-brightness configurations with anti-glare surface treatment can achieve the readability performance that the application requires while operating within the thermal envelope of an outdoor enclosure. The LCD architecture's tolerance for high ambient temperature operation—compared to OLED's more sensitive thermal behavior—is an additional advantage in outdoor installations.

Specification priority: high brightness (typically 700–1000 nits minimum for semi-outdoor), anti-glare surface treatment, and operating temperature range covering the enclosure's summer peak internal temperature.

Installation and Selection Guide—Avoiding Fit and Interface Surprises

Mechanical Fit Verification

Before ordering any AUO panel for an HMI integration, verify the mechanical fit against the enclosure design:

• Outline drawing comparison: overlay the panel's outline drawing against the enclosure's display cutout and mounting bracket drawing; confirm all dimensions including corner radii and mounting hole positions

• Stack-up depth: calculate the total depth from the front of the cover glass to the back of the panel, including the touch sensor, OCA bonding layer, and panel thickness; confirm this fits within the enclosure's available depth

• Bracket and screw positions: confirm the panel's mounting screw positions match the enclosure's bracket; mismatched positions require bracket modification

• Cable routing: confirm the cable exit direction and length are compatible with the enclosure's internal layout and the controller board's connector position

For C123HAX02.2 replacement applications, the mechanical verification is typically straightforward if the replacement is a true same-model substitution—but revision changes between production batches can introduce dimensional or connector changes that require verification even for nominally identical models.

Electrical Interface Verification

• Interface protocol confirmation: verify LVDS vs eDP and lane count against the controller board's display output specification

• Pin mapping verification: compare the panel's connector pin assignment against the cable assembly's wiring; do not assume pin mapping is consistent between panel models even from the same manufacturer

• Power rail verification: confirm the controller board provides the correct voltage rails at sufficient current capacity for the panel's power requirements

• Timing parameter verification: confirm the panel's required timing parameters (pixel clock, sync timing, blanking intervals) are within the controller's configurable range

Optical Stack Planning

The optical stack between the panel and the operator determines the display's real-world readability:

• Touch technology: PCAP (projected capacitive) for gloved or multi-touch operation; resistive for stylus or single-point operation in contaminated environments

• Cover glass thickness: thicker cover glass improves mechanical protection but reduces touch sensitivity and adds optical path length

• OCA bonding: optical clear adhesive bonding between the touch sensor and the panel eliminates the air gap that causes reflections and reduces contrast in high-ambient-light environments

• Anti-reflection treatment: AR coating on the cover glass outer surface reduces reflections from overhead lighting

Thermal and Brightness Management

Backlight lifetime is directly affected by operating temperature and brightness setting. For 24/7 operation:

• Set brightness to the minimum level that provides adequate readability under the actual ambient lighting conditions—not to maximum

• Implement automatic brightness reduction during periods of low activity or reduced ambient light

• Ensure adequate thermal management in the enclosure to keep the panel's operating temperature within the rated range; elevated temperature accelerates backlight degradation

Maintenance and TCO—Why AUO Panel Choices Reduce Lifecycle Cost

Minimizing Redesign Risk Across Production Batches

Industrial HMI products often run for five to ten years with minimal design changes. An AUO panel strategy that standardizes on a specific model—such as C123HAX02.2—and manages revision changes through a controlled approval process reduces the engineering effort required to maintain production continuity across the product's lifecycle.

Each time a display model is changed—whether due to end-of-life, revision change, or supply disruption—the integration team must verify mechanical fit, electrical interface, timing parameters, and optical performance. Standardizing on a stable model with a committed supply chain minimizes the frequency of these verification cycles.

Improving Field Serviceability

A display that can be replaced in the field without returning the unit to the manufacturer reduces the total cost of a display failure event. For AUO panel models with stable mechanical and electrical interfaces, field replacement is a defined procedure that trained service technicians can execute with standard tools and a stocked spare panel.

The alternative—a display that requires factory return for replacement due to complex integration or proprietary interface—converts a component failure into a multi-week service event with significant downtime cost.

Extending Usable Life Through Correct Operation

The most cost-effective maintenance action for an AUO panel LCD is correct brightness management from day one:

• Operate at the minimum brightness that meets readability requirements

• Implement screen dimming or blanking during extended periods of inactivity

• Maintain enclosure thermal management to keep operating temperature within the rated range

• Use clean, regulated power supplies to avoid voltage transients that stress the backlight driver

These practices can extend backlight service life by 30–50% compared to continuous maximum-brightness operation in an unmanaged thermal environment.

TCO Comparison Framework

Conclusion

In 2026, industrial HMI display decisions are not made in a conference room comparing spec sheets—they are made in engineering reviews that weigh uptime, sourcing stability, serviceability, and total lifecycle cost against the application's actual operating conditions. For most factory automation, process control, and industrial terminal applications, the AUO panel LCD architecture delivers the predictable lifetime behavior, supply continuity, and integration stability that these applications require.

For integrators standardizing on a specific platform, C123HAX02.2 represents a field-proven configuration with defined mechanical and electrical interfaces that support both new designs and replacement programs. The specification work that protects this investment happens before the first unit ships: confirmed interface compatibility, verified mechanical fit, defined brightness management, and a supply continuity plan.

Ready to Get a Configuration Recommendation and Quote?

Visit the product pages and submit your operating conditions, quantity, specifications, target metrics, and current problems to receive a matched recommendation and pricing:

Submit the following for a fast, accurate recommendation:

• Operating conditions: indoor/outdoor, ambient temperature range, lighting and glare conditions, 24/7 or shift duty cycle

• Quantity: prototype quantity, annual production volume, spares plan

• Size and specifications: panel size, resolution, interface (LVDS/eDP), brightness target, touch type

• Target metrics: backlight lifetime target, readability requirement, power budget, replacement compatibility requirement

• Current problems: flicker, dimming issues, burn-in concerns, mechanical fit issues, cable or pin mismatch, lead time risk

FAQ

Q1: What is an AUO panel?

An AUO panel refers to a display module manufactured by AU Optronics, one of the world's largest LCD panel manufacturers. AUO panels are widely used in industrial HMI applications for their stable performance, mature supply chain, and established integration practices. They are available in a range of sizes, resolutions, brightness levels, and interface configurations suited to factory automation, process control, medical equipment, transportation, and kiosk applications.

Q2: AUO LCD panel vs. OLED for industrial HMI—what's the practical difference?

An AUO panel LCD uses a backlight and liquid crystal layer to produce images—the backlight degrades gradually and predictably, and the display is not susceptible to differential pixel aging from static content. OLED uses self-emissive pixels that can develop image retention when static UI elements are displayed continuously at high brightness over long periods—a characteristic that industrial HMI applications with static layouts and 24/7 duty cycles must evaluate carefully. LCD also has a more established industrial supply chain for long-lifecycle procurement programs. OLED is a strong choice for applications where contrast, response time, and form factor are the primary requirements and duty cycle is moderate.

Q3: What ROI or payback should we expect when upgrading an HMI display?

ROI for an AUO panel upgrade in an industrial HMI application comes from three sources: reduced downtime from display failures (a display that lasts longer and fails less frequently reduces the frequency and cost of service events); improved operator efficiency from better readability (reduced errors and faster response to display information); and reduced engineering cost from supply continuity (fewer redesign cycles when the display model remains stable across the product's production life). To estimate ROI accurately, provide your current display failure rate, downtime cost per event, and annual production volume.

Q4: Do we need to modify our system to replace with C123HAX02.2?

If C123HAX02.2 is a true same-model replacement for an existing installation, modification may not be required—but you must verify the mechanical outline, interface type (LVDS/eDP), connector and pin mapping, power supply voltage rails, backlight dimming method, and timing parameter compatibility with the controller board before assuming drop-in compatibility. Revision changes between production batches of the same model designation can introduce changes to any of these parameters. For new designs using C123HAX02.2 as the reference platform, the controller board and cable assembly should be designed to the panel's confirmed specification from the outset.

Q5: What parameters are required to select the right AUO panel?

To receive an accurate recommendation for an AUO panel configuration, provide: panel size (diagonal inches); required resolution; target brightness in nits for the installation's ambient lighting conditions; viewing angle requirement; interface type (LVDS or eDP) and lane count; mechanical drawing constraints (outline dimensions, mounting hole positions, cable exit direction); touch technology and cover glass stack-up; operating temperature range; target backlight lifetime; quantity for prototype and annual production; lead time requirement; and any current problems with the existing display (flicker, dimming behavior, fit issues, connector mismatch, supply disruption, or end-of-life notification).
