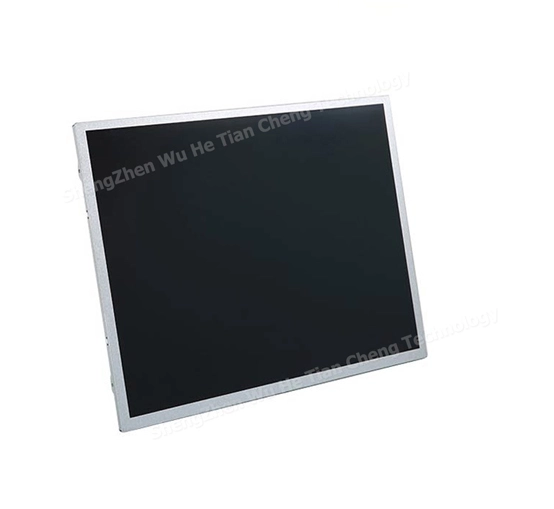

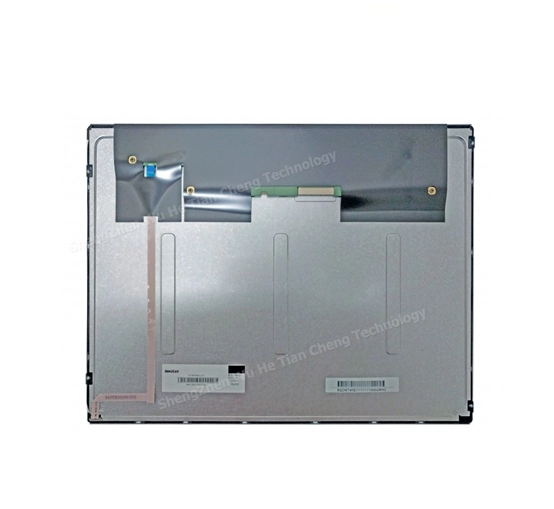

G150XNE-L01 15.0 Inch INNOLUX LCD Panel

Name: G150XNE-L01 15.0 Inch INNOLUX LCD Panel
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

Innolux 15 inch tft lcd panel G150XNE-L01 with 1024(RGB)x768 XGA resolution, brightness 500 cd/m², LVDS 20pin. This lcd display is working temperature is -30 ~ +80 (°C) and its storage temperature is -40 ~ +80 (°C). Based on its white LED backlight. This model is recommended for industrial use.

Compatible resistive touch and capacitive touch options are available. Additionally, we provide a matched LCD controller board.

Products

Parameters of G150XNE-L01 15.0 Inch INNOLUX LCD Panel

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Luminance(cd/m2)	OP(℃)
15	1024*768	G150XNE-L01	326.5253.59.1	304.1*228.1	IPS	LVDS	400	-30~85°C

General Specifications of G150XNE-L01 15.0 Inch INNOLUX LCD Panel

G150XNE-L01

Manufacturer	Innolux
Model Name	G150XNE-L01
Screen Size	15.0 inch
Pixel Number	1024(RGB)×768 , XGA
Active Area(mm)	304.1 (H) x 228.1(V)
Outline(mm）	326.5(H) x 253.5(V) x 9.1(D)
Treatment	Hard Coating (3H), Anti-Glare
Luminance	500 cd/m²
Contrast Ratio	2500:01:00
Viewing Angle	88/88/88/88
Response	13/5ms
Work Mode	NPVA, Normally Black, Transmissive
Color Depth	262K/16.7M, 72% NTSC
Backlight	WLED, 70k Hours, With LED driver
Net Weight	960g
Touchscreen	without
Signal Type/interface Type	LVDS (1 ch, 6/8-bit), 20 pins
Voltage Supply	+3.3 V
Temperature	Storage Temp.: -40 ~ +80 (°C)
Temperature	Operating Temp.: -30 ~ +80 (°C)
Package	Innolux original package;
Package	16 pcs/ctn
