Understanding Backlight Solutions for LCD Displays

The backlight is a critical component of any LCD display, directly influencing its visual performance, power efficiency, and overall cost. At WHTCLCD, we specialize in delivering high-quality LCD displays and TFT LCD modules, including custom solutions tailored to diverse applications. This article explores six common backlight technologies—CCFL, WLED, ELED, DLED, Mini LED, and PWM—detailing their definitions, technical differences, and their relevance to modern LCD display design. By leveraging our expertise as one of the leading LCD display manufacturers in China, we aim to provide insights that align with the needs of businesses seeking reliable LCD display suppliers.

CCFL: The Legacy Backlight Technology

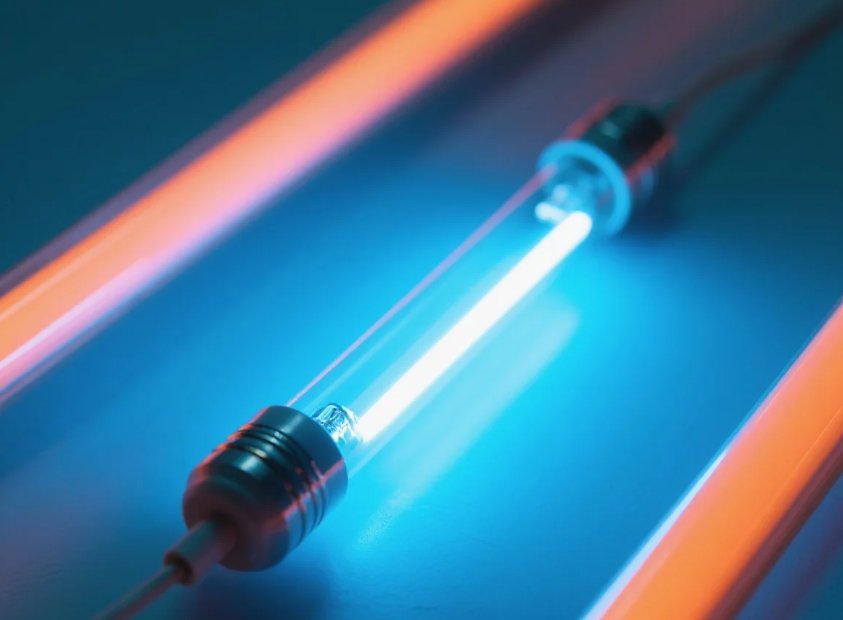

Cold Cathode Fluorescent Lamp (CCFL) was one of the earliest backlight solutions used in LCD displays. Structurally similar to traditional fluorescent lamps, CCFL consists of thin tubes filled with mercury vapor that emit light when an electric current passes through. This technology was known for its high brightness, high color temperature, and decent color rendering, making it a popular choice for early LCD monitors and TFT LCD displays.

However, CCFL has significant drawbacks. Its reliance on toxic mercury makes it environmentally unfriendly, and its tubular design requires complex backlight film systems to ensure uniform light distribution, especially in larger panels like 15-inch LCD displays or 19-inch LCD panels. Additionally, CCFL offers a limited color gamut, typically covering only about 72% of the NTSC standard, which restricts its use in modern high-definition displays. Due to its high power consumption and bulky structure, CCFL has largely been phased out in favor of more efficient technologies. At WHTCLCD, we focus on advanced solutions like TFT LCD displays to meet contemporary demands for energy efficiency and slim designs.

WLED: The Modern Standard for LCD Backlights

White Light Emitting Diode (WLED) has become the dominant backlight technology for LCD displays due to its superior performance over CCFL. WLED backlights are energy-efficient, compact, and mercury-free, making them ideal for a wide range of applications, from 7-inch TFT LCD displays to 10.1-inch LCD panels. WLED technology is further divided into two main configurations: Edge-lit LED (ELED) and Direct-lit LED (DLED), each offering distinct advantages for different display requirements.

ELED: Edge-Lit LED for Slim Designs

Edge-lit LED (ELED) involves placing LED lights along the edges of an LCD panel, with a light guide plate distributing the light evenly across the display. This configuration is particularly suited for slim devices, such as 10.1-inch IPS LCD displays or 7-inch touch displays used in portable electronics. ELED backlights consume less power than their direct-lit counterparts, making them a preferred choice for energy-conscious applications like Raspberry Pi 7-inch touchscreen LCD displays.

While ELED enables thinner profiles, it can be challenging to achieve precise backlight control, especially for high-contrast images. Manufacturers like WHTCLCD invest in advanced light guide technologies to optimize brightness and uniformity in IPS LCD screens, ensuring high-quality visuals for products like our 10.1-inch TFT LCD display.

DLED: Direct-Lit LED for Enhanced Contrast

Direct-lit LED (DLED) places LED lights directly behind the LCD panel, allowing for more uniform light distribution and improved contrast. This setup is ideal for applications requiring high dynamic range (HDR), such as 15.6-inch LCD panels or 19-inch TFT LCD monitors. By evenly distributing LEDs across the panel, DLED enhances image quality, making it suitable for professional displays and larger screens like our 21.5-inch LCD monitors.

However, DLED backlights typically require more LEDs than ELED, increasing power consumption and panel thickness. At WHTCLCD, we balance these trade-offs by offering custom LCD displays that optimize DLED configurations for specific use cases, ensuring both performance and efficiency.

Mini LED: Revolutionizing Backlight Precision

Mini LED represents a significant advancement in backlight technology, utilizing smaller LED chips (50-200μm) to create thousands of dimming zones. This allows for finer control over light and dark areas, achieving contrast ratios exceeding 1,000,000:1—rivaling OLED displays. Mini LED is particularly effective in high-brightness applications, such as 21.5-inch LCD panels with brightness levels reaching 3000 nits or higher, as seen in our premium TFT LCD display offerings.

Unlike traditional DLED or ELED, Mini LED supports regional dimming, where specific backlight zones can be turned off or dimmed to enhance black levels and reduce power consumption. However, low-end Mini LED displays may suffer from halo effects due to light diffusion between zones. At WHTCLCD, our LCD display factory employs advanced dimming algorithms to minimize these issues, ensuring superior performance in products like our 10.1-inch IPS TFT LCD panel.

PWM: Precision Dimming for Optimal Performance

Pulse Width Modulation (PWM) is a dimming technique used to control LED backlight brightness by adjusting the duty cycle of the LED’s operating current. PWM enables real-time brightness adjustments based on displayed content, enhancing contrast and reducing power consumption. For example, in a completely black scene, PWM can turn off specific backlight zones, improving black levels and energy efficiency.

PWM is categorized into two types: global dimming and local dimming.

Global Dimming

Global dimming adjusts the brightness of the entire backlight uniformly, commonly used in 7-inch TFT LCD modules for laptops or 5-inch Raspberry Pi displays. While effective for basic brightness control, global dimming is limited by the native contrast ratio of the LCD panel, typically around 1000:1.

Local Dimming

Local dimming offers more precise control by adjusting brightness in specific zones. It is further divided into:

• 1D Local Dimming: Primarily used in ELED setups, 1D dimming controls LED groups along the panel’s edges, achieving contrast ratios of 6,000:1 to 100,000:1. This is common in HDR-enabled 9-inch LCD monitors or 10.1-inch touch screens.

• 2D Local Dimming: Exclusive to DLED and Mini LED configurations, 2D dimming uses a grid-like array of LEDs to achieve contrast ratios up to 500,000:1. This technology is ideal for high-end displays like our 15-inch LCD monitors or 19-inch TFT LCD monitors, delivering exceptional image quality.

At WHTCLCD, we integrate PWM technology into our LCD display designs to provide dynamic brightness control, enhancing the performance of products like our 7-inch IPS display and 10.1-inch Raspberry Pi touchscreen.

Why Choose WHTCLCD for Your Backlight Solutions?

As a leading LCD display company based in China, WHTCLCD offers a comprehensive range of LCD display types, from 2.4-inch TFT LCD displays to 21.5-inch LCD panels. Our expertise in backlight technologies, including WLED, Mini LED, and PWM, allows us to deliver tailored solutions for applications ranging from industrial monitors to consumer electronics like Raspberry Pi displays. Unlike outdated CCFL solutions, our modern TFT LCD modules prioritize energy efficiency, high contrast, and compact designs.

Our LCD display OEM services ensure that clients receive custom LCD displays that meet specific performance and cost requirements. Whether you need a 7-inch capacitive touch screen for a Raspberry Pi project or a 15.6-inch IPS LCD display for a professional monitor, WHTCLCD combines cutting-edge backlight technology with rigorous quality control to deliver superior products.

Conclusion

Understanding the differences between CCFL, WLED, ELED, DLED, Mini LED, and PWM is essential for selecting the right backlight solution for your LCD display. While CCFL is largely obsolete, WLED-based technologies like ELED and DLED dominate the market, with Mini LED pushing the boundaries of contrast and brightness. PWM enhances these solutions by enabling precise dimming, improving both visual quality and energy efficiency.

At WHTCLCD, we leverage these technologies to provide high-performance LCD displays for a variety of applications. From 10.1-inch TFT LCD displays to 19-inch LCD panels, our products are designed to meet the demands of modern displays. Contact us at https://www.whtctech.com/ to explore our LCD display wholesale options and discover how we can support your next project with our expertise as a premier LCD display manufacturer.
