6 Essential Display Interfaces for TFT LCD Modules

Selecting the right display interface is crucial for ensuring seamless communication between a master controller and a TFT LCD display. At WHTCLCD, a leading LCD display manufacturer in China, we provide a wide range of TFT LCD modules and custom LCD displays tailored to various applications. This article explores the six most common display interfaces—MCU, SPI, TTL-RGB, LVDS, MIPI-DSI, and EDP—detailing their functionalities, applications, and advantages. By leveraging our expertise in LCD display design, we aim to help businesses choose the optimal interface for their needs from trusted LCD display suppliers.

What is a Display Interface?

A display interface serves as the communication bridge between a multimedia processor and a TFT LCD display. It transfers signals from the master controller to the display module, ensuring accurate rendering of images and data. In TFT LCD modules, the interface is typically integrated into the flexible printed circuit (FPC) or printed circuit board (PCB), and sometimes extended through LCD controller boards. The choice of interface impacts factors like display size, resolution, power consumption, and performance, making it a critical consideration for applications such as 7-inch TFT LCD displays or 10.1-inch IPS LCD panels.

Overview of the 6 Most Common Display Interfaces

The six primary interfaces for TFT LCD displays are MCU (Micro Control Unit), SPI (Serial Peripheral Interface), TTL-RGB (Transistor Transistor Logic-Red Green Blue), LVDS (Low Voltage Differential Signaling), MIPI-DSI (Mobile Industry Processor Interface – Display Serial Interface), and EDP (Embedded DisplayPort). Each interface caters to specific display requirements, from small 2.4-inch TFT LCD displays to large 15.6-inch LCD panels. Below, we break down their features, applications, and suitability for various projects.

MCU (Micro Control Unit) Interface

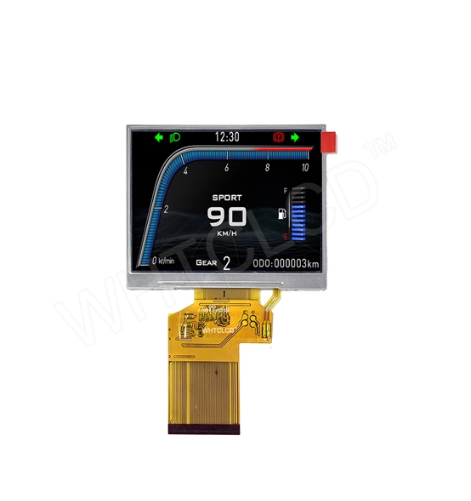

The MCU interface is widely used for small LCD displays, typically under 5 inches with resolutions up to 480xRGBx800. It facilitates reading and writing data to the internal frame buffer or device storage, making it ideal for compact applications like smart home devices or wearables.

Key Signals:

• RD (Read Enable)

• WR (Write Enable)

• RS (Reset Pin)

• CS (Chip Select)

• Data Signals (8-bit, 9-bit, 16-bit, or 18-bit)

The MCU interface supports multi-interface compatibility via an IM pin, offering flexibility for devices like 3.5-inch TFT LCD displays. Its simplicity and low pin count make it suitable for cost-effective solutions, such as WHTCLCD’s 2.8-inch TFT LCD module, but its slower data transfer limits its use in high-resolution displays.

SPI (Serial Peripheral Interface)

SPI is a synchronous serial interface that transmits data between the CPU and the driver IC in a full-duplex manner. It is designed for low-resolution displays (below 320x480) and requires minimal pins, making it perfect for compact devices like smartwatches or small appliances.

Types:

• 3-line SPI: Includes SDA (Data In/Out), SCL (Serial Clock), and CS (Chip Select).

• 4-line SPI: Adds an RS pin (Data/Command Selection) for enhanced control.

With a transmission speed of a few Mbps, SPI is slower but highly efficient for small TFT LCD displays, such as our 1.8-inch TFT LCD module. Its low pin requirement simplifies design, making it a go-to choice for WHTCLCD’s Raspberry Pi displays.

TTL-RGB (Transistor Transistor Logic-Red Green Blue)

The TTL-RGB interface, often referred to as the RGB interface, transmits data in parallel, combining red, green, and blue color channels for direct output to the LCD panel. It bypasses internal memory (DDRAM), writing data directly to the screen, which makes it ideal for fast-paced applications like video or animation playback.

Key Signals:

• VS (Vertical Synchronization)

• HS (Horizontal Synchronization)

• D0…DXX (Data Lines, varying by bit depth: 6-bit, 8-bit, 16-bit, 18-bit, or 24-bit)

• DCLK (Dot Clock)

• DE (Data Enable)

RGB modes include DE, SYNC, and SYNC-DE, with applications in small to medium-sized displays like 7-inch TFT LCD displays or 10.1-inch touch screens. Its high-speed data transfer suits dynamic content, as seen in WHTCLCD’s 4.3-inch IPS LCD panel.

MIPI-DSI (Mobile Industry Processor Interface – Display Serial Interface)

MIPI-DSI, standardized by the MIPI Alliance, is a high-speed serial interface designed for high-resolution displays. It offers low power consumption, high data transfer rates (up to 1Gbps), and compact layout requirements, making it ideal for smartphones, tablets, and laptops.

Key Features:

• Supports 1, 2, 3, 4, or 8 lanes for scalable resolution.

• Transmits both video data and control commands.

• Includes differential signal line pairs and a CLK signal (e.g., 4-lane MIPI).

MIPI-DSI is perfect for high-resolution IPS LCD screens, such as our 10.1-inch IPS LCD panel, but its complexity requires careful debugging and initialization. WHTCLCD optimizes MIPI-DSI integration for seamless performance in premium applications.

LVDS (Low Voltage Differential Signaling)

LVDS is a low-swing differential signaling technology that supports high-speed data transfer (hundreds of Mbps) with low noise, low power consumption, and minimal electromagnetic interference (EMI). It uses a ±350mV swing at a 1.2V DC bias, with differential lines canceling interference for robust performance.

Key Features:

• Supports 3, 4, or 8 lanes, with a CLK signal pair.

• Uses VSYNC, HSYNC, and DE for data synchronization.

• Often paired with an SPI port for initialization (LVDS+SPI).

LVDS is commonly used in large LCD displays, such as 15-inch LCD monitors or automotive displays, due to its ability to handle high-resolution video data. WHTCLCD’s 19-inch TFT LCD monitors leverage LVDS for reliable, high-quality performance in industrial and automotive applications.

EDP (Embedded DisplayPort)

EDP is a digital interface based on DisplayPort architecture, designed for high-resolution displays with simpler connectors and fewer pins than LVDS. It supports simultaneous transmission of video and audio data at rates higher than LVDS, making it suitable for tablets, notebooks, and large-scale displays.

Key Signals:

• Main Link (1-4 pairs of differential data lines for video/audio).

• AUX CH (Auxiliary channel for link management and control).

• HPD (Hot Plug Detection).

For example, EDP can drive a 1440x900 display with just two pairs of signal lines, compared to LVDS’s eight lanes. This efficiency makes it ideal for 21.5-inch LCD panels or high-resolution WHTCLCD products.

Comparison of the 6 Display Interfaces

To help you choose, here’s a comparison of the six interfaces:

Choosing the Right Interface with WHTCLCD

Selecting the appropriate interface depends on your project’s requirements:

• Small, Low-Resolution Displays: MCU or SPI interfaces suit 2.4-inch TFT LCD displays or Raspberry Pi displays for cost-sensitive applications.

• Medium-Sized, Dynamic Displays: TTL-RGB is ideal for 7-inch TFT LCD displays showing video or animations.

• High-Resolution, Compact Devices: MIPI-DSI supports 10.1-inch touch screens in smartphones and tablets.

• Large, High-Resolution Displays: LVDS and EDP are best for 15.6-inch LCD panels or 19-inch TFT LCD monitors in industrial or automotive settings.

Conclusion

Understanding the six key display interfaces—MCU, SPI, TTL-RGB, LVDS, MIPI-DSI, and EDP—is essential for selecting the right TFT LCD display for your project. Each interface offers unique benefits, from the simplicity of MCU and SPI to the high-speed capabilities of EDP. As a premier LCD display company, WHTCLCD provides a wide range of LCD display types, from 2.8-inch TFT LCD modules to 21.5-inch LCD panels, tailored to your needs. Visit https://www.whtctech.com/ to explore our LCD display wholesale options and discover how we can support your project as a leading LCD display manufacturer.
