How Does an LCD Work?

Liquid Crystal Displays (LCDs) are integral to modern technology, powering everything from smartphones to industrial TFT display monitors. Understanding how an LCD functions involves exploring its structure and the interplay of its components to produce vibrant images. At WHTCLCD, we specialize in LCD with controller board solutions that enhance display performance across various applications. This article breaks down the structure, working principles, and key components of LCDs, focusing on display TFT LCD technology, to provide a clear understanding of how these displays create stunning visuals.

What is an LCD?

An LCD, or Liquid Crystal Display, is a flat-panel technology that uses liquid crystals and polarizers to modulate light and produce images. Unlike emissive displays like OLED touch screens, LCDs rely on a backlight or reflective surface to generate visuals, making them versatile for both color and monochrome applications. The most common type, TFT-LCD (Thin-Film Transistor LCD), dominates the market due to its active matrix design, which ensures high resolution and clarity. WHTCLCD’s LCD controller boards are engineered to optimize TFT display monitors, delivering seamless performance for industries ranging from medical to automotive.

Structure of an LCD: Key Components

An LCD, particularly a display TFT LCD, comprises several critical layers that work together to create images. These include the Backlight Unit (BLU), Polarizers (POL), Liquid Crystal Display Panel (Cell Layer), Integrated Circuit (IC), and Flexible Printed Circuit (FPC). Below, we explore each component’s role, emphasizing how WHTCLCD’s solutions enhance their functionality.

Backlight Unit (BLU)

The BLU provides the light source for an LCD, as liquid crystals cannot emit light independently. Typically using LED strips, the BLU ensures uniform brightness and sufficient illumination for the display. The quality of the BLU directly impacts brightness, color accuracy, and uniformity. WHTCLCD’s LCD controller boards incorporate advanced backlight control, optimizing energy efficiency and extending the lifespan of LCD monitor TFT displays, making them ideal for applications requiring consistent performance, such as digital signage.

Polarizers (POL)

Polarizers filter unpolarized light into polarized light, controlling which light patterns reach the LCD panel. By aligning light in specific directions, polarizers enhance contrast and image clarity. Without them, visuals would lack sharpness. WHTCLCD’s LCD with controller board solutions ensure precise polarizer integration, supporting high-contrast displays for TFT display monitors used in professional settings.

Integrated Circuit (IC)

The IC, or driver chip, manages electrical signals to control the liquid crystal’s behavior. It adjusts parameters like phase, frequency, and voltage to drive the transparent electrodes, enabling pixel-level precision. WHTCLCD’s LCD controller boards feature advanced ICs that ensure smooth signal processing, delivering vibrant visuals for LCD display TFT applications, from consumer electronics to industrial interfaces.

Flexible Printed Circuit (FPC)

The FPC connects the LCD panel to the host device, facilitating electrical communication and interfacing with the motherboard. Its flexibility allows for compact designs and reliable signal transmission. WHTCLCD’s LCD with controller board solutions incorporate robust FPCs, ensuring seamless connectivity for monitor TFT LCD systems in demanding environments.

Liquid Crystal Display Panel (Cell Layer)

The cell layer is the heart of the LCD, consisting of liquid crystals sandwiched between two glass substrates: one with a Thin-Film Transistor (TFT) array and another with a Color Filter (CF). The TFT substrate controls pixel voltage to manipulate liquid crystal alignment, while the CF divides each pixel into red, green, and blue sub-pixels to produce color. WHTCLCD’s display TFT LCD solutions optimize this layer for high-resolution, vibrant displays, making them suitable for LCD monitor TFT applications.

Working Principles of an LCD

LCDs operate through a combination of optical and electrical processes, known as optoelectronics. WHTCLCD’s LCD controller boards enhance these processes, ensuring efficient operation for TFT display monitors.

Optoelectronic Principles

• Optical Perspective: Light consists of waves with different polarization directions. When light passes through liquid crystals, their alignment creates optical path differences, altering the light’s polarization. Polarizers then filter this light to control its transmittance, determining brightness and contrast.

• Electrical Perspective: Applying voltage to liquid crystals changes their arrangement, influencing the optical path and thus the light’s transmittance. This allows electrical signals to be translated into visual outputs, creating bright or dark pixels. WHTCLCD’s LCD controller boards precisely manage these voltage changes, ensuring accurate image reproduction in LCD display TFT systems.

Working Process of an LCD

The collaboration of LCD components results in the creation of color images. Here’s how it works, with a focus on display TFT LCD technology:

Liquid Crystal Molecules

TFT-LCDs use Twisted Nematic (TN) liquid crystals, which are elliptical and align along their long axes. When placed between two grooved glass surfaces with perpendicular orientations, the crystals twist 90° from the lower surface (aligned with direction ‘b’) to the upper surface (aligned with direction ‘a’). This twist affects how light passes through, a process enhanced by WHTCLCD’s LCD with controller board solutions for precise control.

Light and Liquid Crystal Interaction

When polarized light enters the upper grooved surface, it follows the 90° twist of the liquid crystals, rotating its polarization. If no voltage is applied, the light exits the lower surface rotated 90°, passing through the lower polarizer. When voltage is applied, the crystals align vertically, halting the rotation, and the light is blocked by the lower polarizer. This on-off mechanism forms the basis of pixel control in TFT display monitors.

Role of Polarizers

Polarizers filter unpolarized light into linearly polarized light. The upper polarizer aligns light in the ‘a’ direction, and the lower polarizer, perpendicular to it, either allows or blocks the light based on the liquid crystals’ state. WHTCLCD’s LCD controller boards ensure optimal polarizer performance, enhancing contrast in LCD monitor TFT displays.

Creating Images with TFT-LCD

1. Scan Driver IC (Gate Driver): Transmits scan signals to activate rows of pixels.

2. Data Driver IC (Source Driver): Controls TFT switches to manage sub-pixel states. When a sub-pixel is off, light passes through the color filter, displaying red, green, or blue. When on, the sub-pixel appears black.

3. Color Filter (CF): Produces red, green, and blue light, which combines to form various colors.

4. Synthesis Effect: The interplay of light through the CF and polarizers creates vibrant images. WHTCLCD’s LCD with controller board solutions optimize this process, ensuring high-quality visuals for display TFT LCD applications.

Advantages of WHTCLCD’s LCD Solutions

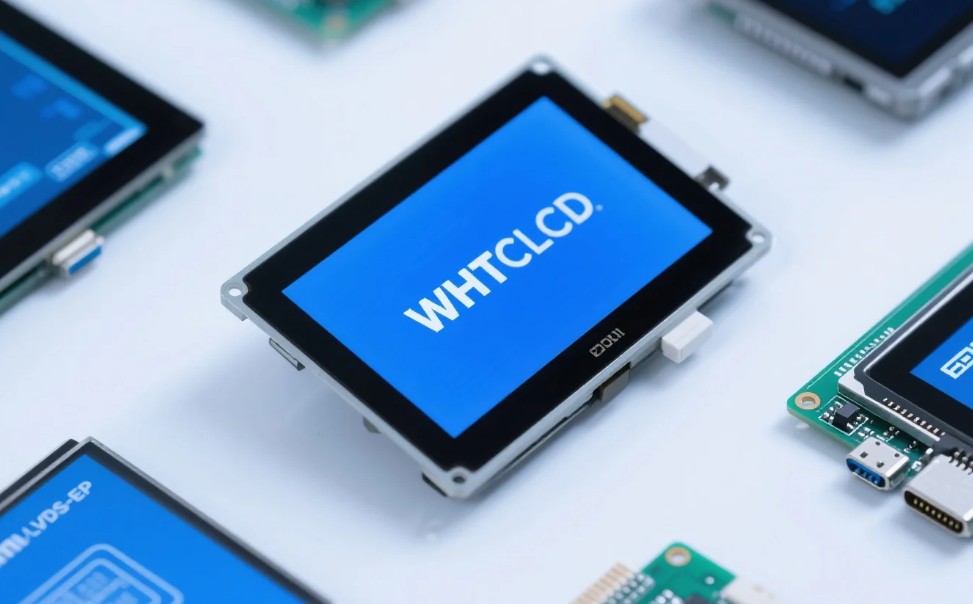

WHTCLCD’s LCD controller boards and LCD with controller board products are designed to maximize TFT display monitor performance. Our solutions offer:

• High Compatibility: Support for various resolutions and interfaces, including HDMI, LVDS, and eDP, for seamless integration.

• Energy Efficiency: Advanced backlight control reduces power consumption, ideal for LCD monitor TFT systems in long-term use.

• Durability: Designed for rugged environments, ensuring longevity in industrial and automotive applications.

• Customization: Tailored solutions for specific needs, from display TFT LCD for consumer devices to OLED touch screens for premium applications.

Applications of TFT-LCD

TFT-LCDs are versatile, powering:

• Consumer Electronics: Smartphones, tablets, and TVs, enhanced by WHTCLCD’s LCD with controller board solutions.

• Industrial Systems: Control panels and HMIs, supported by robust TFT display monitors.

• Medical Displays: High-contrast LCD monitor TFT systems for imaging, optimized by WHTCLCD’s precision controllers.

• Automotive: Dashboards and infotainment systems, where display TFT LCD ensures clarity and durability.

Why Choose WHTCLCD?

At WHTCLCD, our LCD controller boards and display TFT LCD solutions are engineered for performance, reliability, and versatility. With expert support and detailed documentation, we help you select the perfect LCD monitor TFT or OLED touch screen solution for your project. Visit our website to explore our offerings and elevate your display applications.

Conclusion

LCDs, particularly TFT-LCDs, create vibrant images through the precise interplay of backlight, liquid crystals, polarizers, and driver circuits. WHTCLCD’s LCD with controller board solutions enhance this process, delivering high-quality visuals for TFT display monitors across industries. Whether you need a cost-effective LCD monitor TFT or a cutting-edge OLED touch screen, WHTCLCD provides the technology and support to bring your vision to life.

References

• Lee, J., & Park, S. (2021). Fundamentals of Liquid Crystal Displays. Display Technology Journal.

• Smith, T. (2020). TFT-LCD Technology: Principles and Applications. International Display Review.

• Kim, H. (2019). Optoelectronic Mechanisms in Modern LCDs. Electronics and Display Conference Proceedings.
