LCD, TFT, and OLED Displays

Liquid Crystal Displays (LCDs), Thin-Film Transistor LCDs (TFT LCDs), and Organic Light-Emitting Diode (OLED) displays are pivotal technologies in modern electronics, each with unique strengths. At WHTCLCD, we specialize in LCD with controller board solutions that optimize display TFT LCD and IPS TFT display performance for applications from industrial HMIs to consumer devices. This article explores the fundamentals, design, and differences between LCD, TFT, and OLED displays, providing a comprehensive guide to their technologies, advantages, and use cases, while highlighting WHTCLCD’s expertise in delivering tailored display solutions.

Fundamentals of LCD Technology

An LCD operates by modulating light through liquid crystals sandwiched between two glass plates. These crystals twist the polarization of light under an electric field, created by thin metallic films on the glass. A polarizer on the bottom plate filters incoming light into polarized light, while an analyzer on the top plate, rotated 90°, controls light passage. In the idle state, the liquid crystals twist light by 90°, allowing it to pass through the analyzer, making the LCD transparent. Applying voltage realigns the crystals, blocking light and rendering the LCD opaque.

WHTCLCD’s LCD controller boards enhance this process by precisely managing voltage signals, ensuring high contrast and clarity for LCD monitor TFT applications. Our solutions support various LCD configurations, from monochrome to full-color TFT display IPS, catering to diverse industries.

Understanding TFT LCD Technology

TFT LCD displays are a type of LCD that use Thin-Film Transistors to control each pixel, enabling high-resolution color displays. Unlike basic LCDs, which are often monochrome and passive, display TFT LCD systems incorporate a backlight and color filters to produce vibrant images. TFT LCDs typically use Twisted Nematic (TN) or In-Plane Switching (IPS) technologies, with TN being faster but limited in viewing angles, and IPS offering superior color and angle performance.

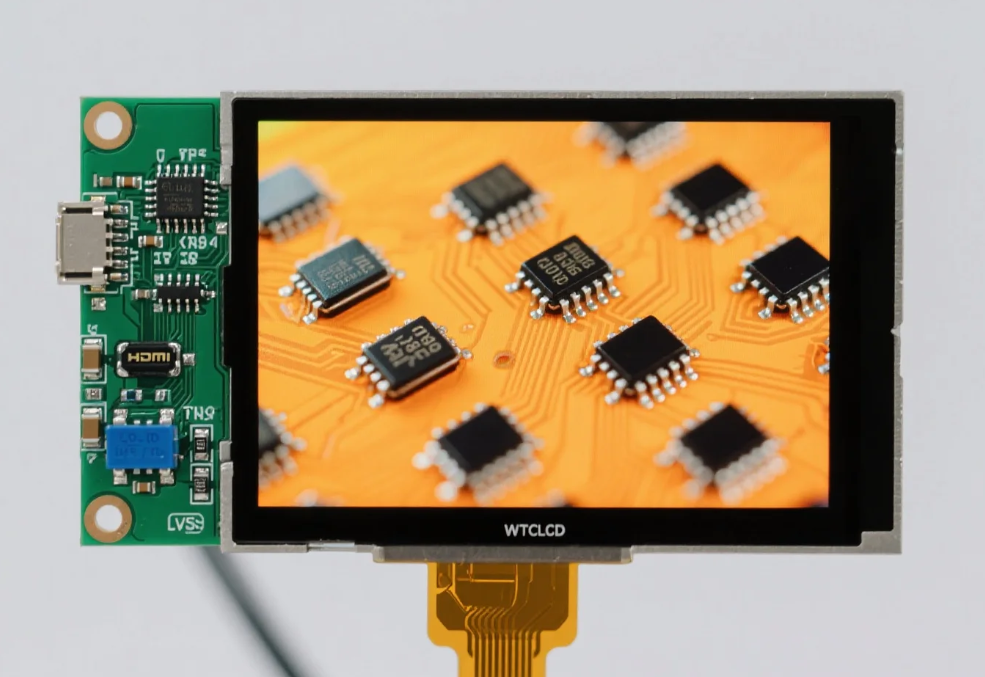

WHTCLCD’s LCD with controller board solutions optimize TFT display monitors, supporting resolutions up to 4K and interfaces like HDMI and LVDS. Our IPS TFT LCD display options leverage All-Angle-Color-Stability (AACS) technology, ensuring consistent colors and readability at angles up to 85°, ideal for professional settings.

OLED Display Technology

OLED displays are active, self-emissive technologies where each pixel generates light using organic compounds. Unlike LCD display TFT, OLEDs require no backlight, achieving deep blacks, high contrast, and wide viewing angles (up to 170°). Their response times are exceptionally fast (10 µs, equivalent to a theoretical 50,000 Hz refresh rate), surpassing TFT display IPS and LCDs. However, OLED power consumption varies with content, and their organic materials degrade faster, limiting lifespan to 30,000–50,000 hours compared to 50,000–60,000 hours for monitor TFT LCD.

WHTCLCD’s OLED touch screen solutions offer vibrant visuals for premium applications, while our LCD controller boards provide durable alternatives for industries prioritizing longevity, such as industrial automation.

Comparing LCD, TFT, and OLED Displays

LCD Advantages and Limitations

• Advantages: Extremely low power consumption, especially in reflective mode, and excellent readability in bright environments like sunlight. WHTCLCD’s LCD controller boards support reflective LCDs for energy-efficient applications.

• Limitations: Limited to monochrome or low-resolution displays, with slower response times unsuitable for dynamic content.

TFT LCD Advantages and Limitations

• Advantages: High-resolution color displays, fast response times (especially TN), and versatility for TFT display monitors. WHTCLCD’s IPS TFT display solutions enhance viewing angles and color stability.

• Limitations: Requires a backlight, increasing power consumption, and TN-based displays suffer from narrow viewing angles and gray inversion.

OLED Advantages and Limitations

• Advantages: Superior contrast, wide viewing angles, and ultra-fast response times, ideal for OLED touch screen applications.

• Limitations: Higher power consumption for bright content and shorter lifespan due to organic material degradation. WHTCLCD’s LCD with controller board solutions offer a longer-lasting alternative.

Display Modes and Technologies

TN, STN, and FSTN

• Twisted Nematic (TN): Twists light by 90°, used in basic LCDs and TFT LCD displays. Offers good contrast but limited viewing angles (45°–55°).

• Super Twisted Nematic (STN): Twists light by 180° or more, improving contrast but introducing color shifts (e.g., yellow-green or blue modes). WHTCLCD’s LCD controller boards support STN for cost-effective text displays.

• Film-Compensated STN (FSTN): Adds a compensation film to reduce color shifts, requiring backlighting. Suitable for lit LCD monitor TFT applications.

Reflective, Transflective, and Transmissive Modes

• Reflective: Uses ambient light, ideal for sunlight-readable displays but cannot be backlit. WHTCLCD’s reflective LCDs excel in outdoor applications.

• Transflective: Combines reflective and backlit capabilities, offering versatility for display TFT LCD in varying light conditions.

• Transmissive: Requires backlighting, providing bright visuals for TFT display IPS in indoor settings.

Positive and Negative Modes

• Positive Mode: Black characters on a light background, readable with or without backlighting. Common in WHTCLCD’s LCD display TFT solutions.

• Negative Mode: Light characters on a dark background, requiring backlighting for readability, used in premium monitor TFT LCD designs.

Driving Methods: Static vs. Multiplex

Small LCDs use static driving, where each segment is directly controlled, offering high contrast and wide viewing angles. Larger TFT display monitors employ multiplex driving, dividing the display into rows and columns to reduce connections (e.g., 128x64 pixels require 192 lines instead of 8192). Multiplexing reduces contrast and viewing angles at high rates, mitigated by STN or IPS TFT LCD display technologies. WHTCLCD’s LCD controller boards support both methods, ensuring flexibility for LCD monitor TFT applications.

Backlighting Options

Backlighting enhances LCD readability, with options including:

• LED (Yellow-Green): Long lifespan (100,000 hours), low cost, but limited brightness. Ideal for WHTCLCD’s monochrome LCDs.

• LED (White): Brighter, with 5,000–20,000 hours lifespan, suitable for TFT display IPS.

• Electroluminescent (EL): Thin and low-power, but shorter lifespan (5,000–10,000 hours).

• Cold Cathode Fluorescent Lamp (CFL): Extremely bright, but requires an inverter and lasts 10,000–20,000 hours.

WHTCLCD’s LCD controller boards optimize backlighting for display TFT LCD, balancing brightness and energy efficiency.

Temperature Considerations

Standard LCDs operate from 0 to 50°C, while high-temperature models support -20 to 70°C, requiring temperature compensation circuits. Exceeding storage temperatures (e.g., direct sunlight) can destroy LCDs due to overheating. WHTCLCD’s LCD with controller board solutions include compensation circuits, ensuring reliable performance for TFT display monitors in harsh environments.

Why Choose WHTCLCD?

At WHTCLCD, our LCD controller boards and display TFT LCD solutions deliver:

• Versatility: Support for static and multiplexed displays, with interfaces like SPI and I²C.

• Durability: Designed for extreme temperatures and rugged applications.

• Customization: Options for touch panels, backlighting, and complete HMIs.

• Expertise: Decades of experience in optimizing IPS TFT LCD display and OLED touch screen solutions.

Conclusion

LCD, TFT, and OLED displays each offer unique advantages: LCDs excel in low-power, sunlight-readable applications; TFT LCD displays provide high-resolution color; and OLEDs deliver unmatched contrast and speed. WHTCLCD’s LCD with controller board solutions enhance TFT display IPS and LCD monitor TFT performance, ensuring reliability across industries. Whether you need a cost-effective LCD or a vibrant OLED touch screen, WHTCLCD provides tailored technology to meet your project’s demands.

References

[1]. Yang, D.-K., & Wu, S.-T. (2023). "Fundamentals of liquid crystal displays and emerging technologies." Applied Physics Reviews, 10(3), 031301.

[2]. Wikipedia contributors. (2025, April 20). "Organic light-emitting diode." Wikipedia, The Free Encyclopedia. Retrieved from https://en.wikipedia.org/wiki/Organic_light-emitting_diode

[3]. Kim, J.-S., & Lee, H.-K. (2022). "TFT-LCD and OLED display technologies: A comparative analysis." Displays, 76, 102367.

[4]. International Electrotechnical Commission. (2024). "IEC 61747-10-1: Liquid crystal display devices – Part 10-1: Environmental, endurance and mechanical test methods."
